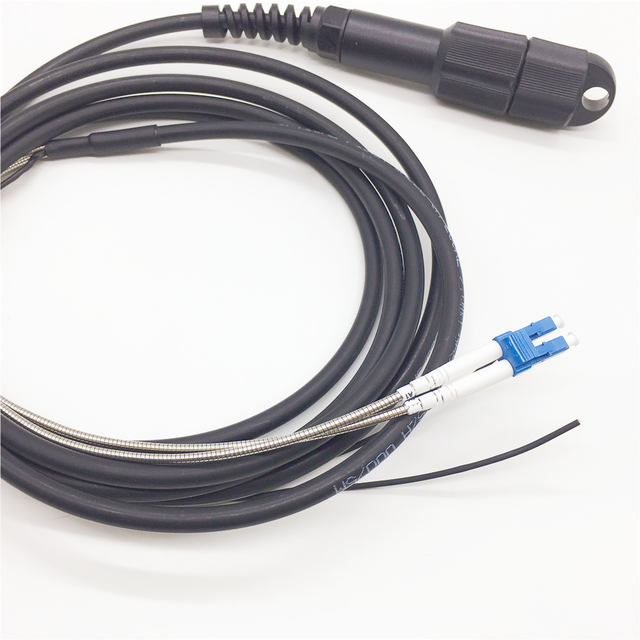

PDLC to LC Armored Fiber Patch Cord are designed to fit for outdoor applications. The strong LSZH jacket and armored structure can resist high temperature and suit to use in harsh environment.
Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com
PDLC duplex singlmode waterproof fiber patch cable with PDLC connector from Tyco/ZTE/Huawei Which compatible waterproof sealing on one end of the cable and standard LC/SC/FC/ST connector on the other end. The connector is designed to exceed the requirements of ODVA, and meet IP66/67 environmental sealing ratings and is the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The LC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. PDLC single mode duplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh.
Optical performance:
Product Type | Waterproof Cable | Fiber Type | Singlemode OS2 9/125 |
Connector 1 | PD LC | Connector2 | LC/FC/SC/ST/E2000 |
Trunk Diameter | 7.0mm | Branch Diameter | 3.0mm |
Insertion Loss | ≤0.30dB | Return Loss | LC≥50dB,E2000APC≥60dB |
Storage Temperature | -55°C-85°C | Operating Temperature | -40°C-85°C |
Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
Typical Usages
FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
Typical Advantage
IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof
Fiber optic patch cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. For the fiber patch cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center. We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here. For most of them, the SC, ST, FC, LC, MU, MTRJ, E2000, APC/UPC connectors are all available, even we supply MPO/MTP fiber cables.
PDLC to LC Armored Fiber Patch Cord CPRI RRU BBU Cable protection tube, wait for your inqruiy.
