Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com
Features:
1. The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
2. Standard Duplex LC connector, well connected with standard LC adaptor
3. Available Single mode and Multimode
4. IP67 protection, salt-mist proof, humidity proof, dust proof
5. Low insertion/return loss, steady optical transmitting.
6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
7. 500cycles Mechanical life
8. Easily add/install jumper cables for a future expansion
9. Factory-assembled cables for a fast on-site installation
10. Flexibility with small bending radius and excellent cable routing properties
11. Equipped with customer specific power and fiber-optic connectors
Applications:
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower
Item | Description | Standard | |
Cable Model | GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1 | ||
Number Optic-cable Core | 2 | ||
Weight Kg/km | 45.0 | ||
Outside Dia. mm | Φ7.0±0.2 | ||
Outer Sheath | material | LSZH | YD/T 1113-2001 |
color | BLACK | ||
thickness | 1mm | ||
Tight buffer | material | FRP | |
Dia. mm | Φ1.0±0.1 | ||
Subunit | Quantity(pcs) | 2 | |
Sheath Dia. | Φ2±0.1mm | ||
Sheath Material & Color | LSZH & yellow | ||
Reinforced core | aramid fiber | ||
Mark Unit | Differ A,B,C and D fiber within 10mm | GB/T 6995.2 | |
Fiber core | Fiber Type | G.652D | |
sheath color | white | ||
Sheath material | LSZH | ||
Out-Dia fiber for Tight layer | 0.90±0.05 mm | ||
Fiber specification | 9/125(G652D) | ||
Allowable Tension | Short term ≥500N | ||
Long term ≥300N | |||
inflaming retarding Class | Confirm to IEC60332-3C | ||
Mini Bending radius | 10D | ||
Fiber Cable Printing | Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date | ||
Working life | ≥25years | ||
*all materials confirm to RoHS
1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.

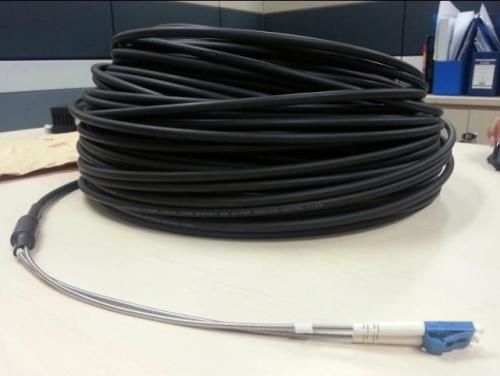

FTTA Outdoor Fiber Optic Cables Patch Cords DLC-DLC are waiting for your inquiry.
