Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com

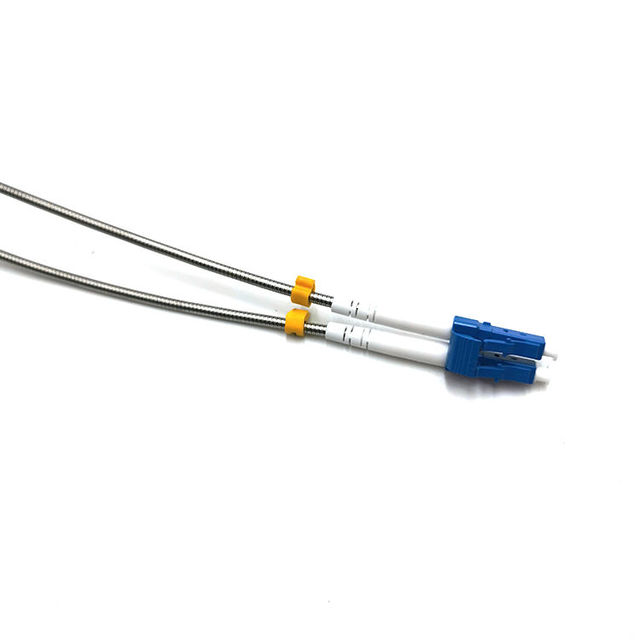

Armored CPRI patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube which protects optical fiber and provide better security for the whole system.
The CPPI armored fiber optic cable which "can be freely used like electrical wire",this item is protected by flexible stainless steel tube.Compare with the regular fiber cable,it have advantage performance of High compression & impact resistance,anti-bug. With fixed standard 3mm fiber optic connector,it widely used in various terrible environment.
DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Item | Description | Standard | |
Cable Model | GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1 | ||
Number Optic-cable Core | 2 | ||
Weight Kg/km | 45.0 | ||
Outside Dia. mm | Φ7.0±0.2 | ||
Outer Sheath | material | LSZH | YD/T 1113-2001 |
color | BLACK | ||
thickness | 1mm | ||
Tight buffer | material | FRP | |
Dia. mm | Φ1.0±0.1 | ||
Subunit | Quantity(pcs) | 2 | |
Sheath Dia. | Φ2±0.1mm | ||
Sheath Material & Color | LSZH & yellow | ||
Reinforced core | aramid fiber | ||
Mark Unit | Differ A,B,C and D fiber within 10mm | GB/T 6995.2 | |
Fiber core | Fiber Type | G.652D | |
sheath color | white | ||
Sheath material | LSZH | ||
Out-Dia fiber for Tight layer | 0.90±0.05 mm | ||
Fiber specification | 9/125(G652D) | ||
Allowable Tension | Short term ≥500N | ||
Long term ≥300N | |||
inflaming retarding Class | Confirm to IEC60332-3C | ||
Mini Bending radius | 10D | ||
Fiber Cable Printing | Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date | ||
Working life | ≥25years | ||
*all materials confirm to RoHS
* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
If you need OEM Cpri Armored Fiber Optic Patch Cord 4c Outdoor Patch Cord, feel free to let me know.
