Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com

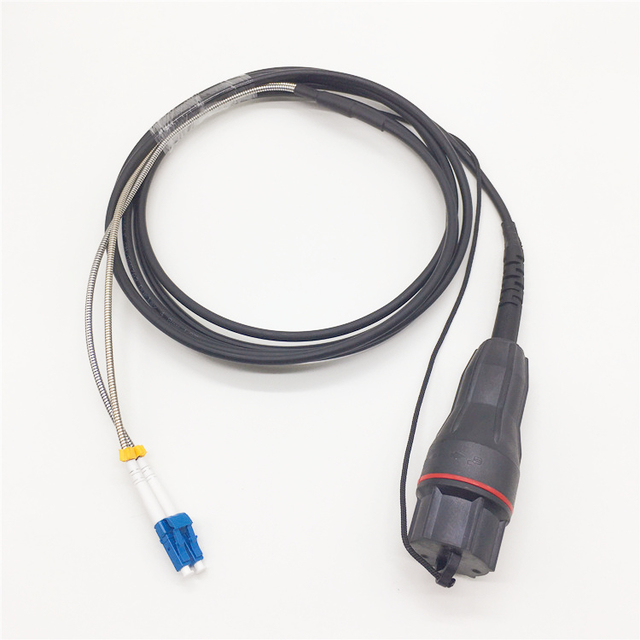

Outdoor Waterproof FTTA Fiber Optic Patch Cord is used for Fiber to the Antenna, and Duplex Base Station Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm diameter, with water blocking aramid yarns and UV resistant black out jacket. DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (ARMOURED TYPE) Length= 5m, 10m, 20m, 30m, 40m, 50m, 70m, 100m, 150m, 200m... With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, ODLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.
Item | Description | Standard | |
Cable Model | GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1 | ||
Number Optic-cable Core | 2 | ||
Weight Kg/km | 45.0 | ||
Outside Dia. mm | Φ7.0±0.2 | ||
Outer Sheath | material | LSZH | YD/T 1113-2001 |
color | BLACK | ||
thickness | 1mm | ||
Tight buffer | material | FRP | |
Dia. mm | Φ1.0±0.1 | ||
Subunit | Quantity(pcs) | 2 | |
Sheath Dia. | Φ2±0.1mm | ||
Sheath Material & Color | LSZH & yellow | ||
Reinforced core | aramid fiber | ||
Mark Unit | Differ A,B,C and D fiber within 10mm | GB/T 6995.2 | |
Fiber core | Fiber Type | G.652D | |
sheath color | white | ||
Sheath material | LSZH | ||
Out-Dia fiber for Tight layer | 0.90±0.05 mm | ||
Fiber specification | 9/125(G652D) | ||
Allowable Tension | Short term ≥500N | ||
Long term ≥300N | |||
inflaming retarding Class | Confirm to IEC60332-3C | ||
Mini Bending radius | 10D | ||
Fiber Cable Printing | Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date | ||
Working life | ≥25years | ||
*all materials confirm to RoHS
* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
Look forward to your inquiry about our Outdoor Waterproof LSZH Jacket PDLC-DLC FTTA Fiber Optic Patch Cord.
