Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com
PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
Specification:
The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
Cable Parameters:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature
| |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
Connector Specification:
| ITEM | PARAMETER |
| Connector type | DLC/UPC . PDLC |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| Fiber mode | Single mode 9/125 |
| Operating wavelength | 1310nm, 1550nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

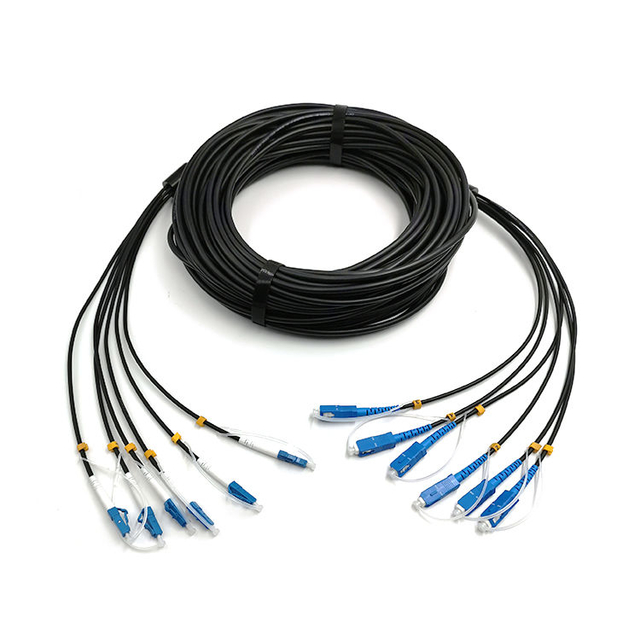

Look forward to your inquiry about our Waterproof PDLC 6 core outdoor Fiber Cord PDLC Fiber Optic Patch Cords / jumper.
