NSN Boot RRU CPRI cable

NSN Boot RRU CPRI Duplex LC Fiber Optic Cable Jumper Patch Cord for Nokia NSN

In Stock. SKU.140130
$   18.5
Mode* Single-mode
Single-mode
Multi-mode
Quantity:
piece(s)
( Min. Order 100 )
Shipping:
$ 2,198.37
to United States Change
Estimated delivery time : 0-27 working days. See details
Total Price:
$ 1,850
Shipping calculated at checkout.
Weight:
1.00 KG
Package:
1000.00cm*1000.00cm*1000.00cm

Different length will be different price, kindly contact us for detail price and leadtime.

SOGOO TECHNOLOGY CO., LTD

Mob/Wechat: +86-150-1946-5365

Whatsapp Business: +852 66425118

E-mail: sales@sogootech.com

Website: www.sogootech.com

www.telecomscable.com

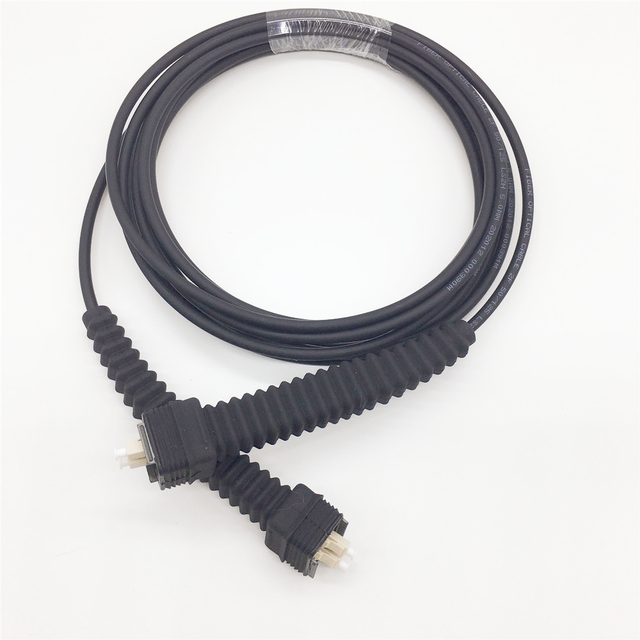

NSN Boot RRU CPRI Duplex LC Fiber Optic Cable Jumper Patch Cord for Nokia NSN

Features

Low insertion loss and back reflection loss.
Good waterproof preformance.

IP67 moisture and dust protection for harsh environments

Adopt Japan Ceramic Ferrule

Low smoke, zero halogen and flame retardant sheath.
Smaller diameter, simple structure, light weight, and high practicability.
Special low-bend-sensitivity fiber provides high bandwidth data transmission.

Easy mount to save time

Applications
Optical fiber communication systems Optical fiber data transmission Building network access Cabling system ODF

FTTX FTTA FTTH applications

Nokia Fiber Patch Cord is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The NSN Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Optical performance:

Mode
Single Mode ( SM)
Multi Mode (MM)
End-face Polish
UPC
APC
APC
Insertion Loss
Typical ≤0.2dB; Maximum ≤0.3dB
≤0.25dB
Return Loss
≥50dB
≥65dB
≥35dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB (1000 times mating)
Tensile Strengh
> 10kg
Temperature
≤0.2dB (-40 ,+85 sustain 100 hours)
Humidity
≤0.2dB (+25 ,+65 93 R.H.100 hours)
Waterproof Optional Fiber Patch Cord Customize
Connector type
Duplex LC
Ferrule End-face
UPC, APC
Fiber Core Type
Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Waterproof Solution
ODVA/FULLAXS/OPTITAP/NSN/AARC/PDLC/ODC/CPRI optional
Fiber Cable Shape
bundle fibers
Cable Diameter
φ5.0mm;φ7.0mm
Length
1, 2, 3, 5, 10 ,20,50,100,200 meter or customized length
Jacket
TPU,PVC, LSZH optional

Features

Ø High temperature stability, low insertion loss

Ø Water proof, dust proof and corrosion resistant

Ø Bump resistance - 4000 bumps @ 40g acceleration

Ø Easy operation, reliable and cost-effective installation

Ø Free fall resistance - 500 falls onto concrete from 1.2M height

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE

Why Choose Us:

1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.

Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.


NSN Boot RRU CPRI Duplex LC Fiber Optic Cable Jumper Patch Cord for Nokia NSN, welcome to your inquriy.
