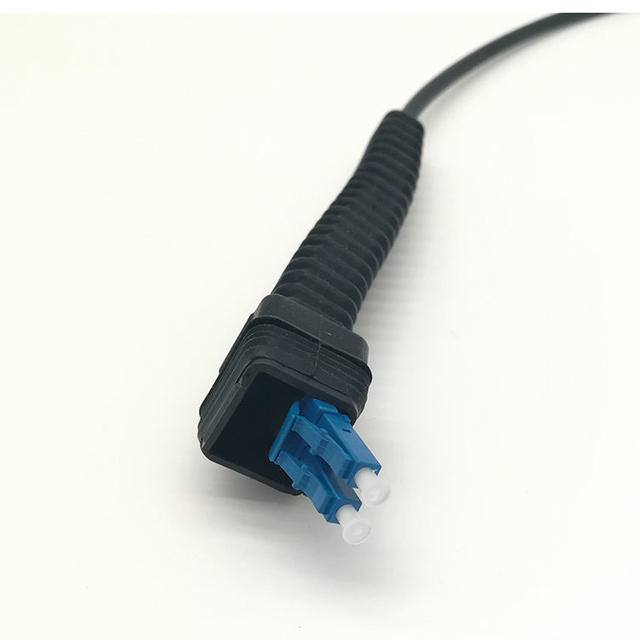

LC DX Armored Fiber Optic Cable, Nokia Patch Cord Compatible NSN Connector

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.102213
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   18.5
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 1,850
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com


    Nokia Fiber Patch Cord With NSN Connector, LC DX Armored Fiber Optic Cable

    Nokia Fiber Patch Cord is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The NSN Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

    Optical performance:

    Mode
    Single Mode ( SM)
    Multi Mode (MM)
    End-face Polish
    UPC
    APC
    APC
    Insertion Loss
    Typical ≤0.2dB; Maximum ≤0.3dB
    ≤0.25dB
    Return Loss
    ≥50dB
    ≥65dB
    ≥35dB
    Interchangeability
    ≤0.2dB
    Repeatability
    ≤0.1dB
    Durability
    ≤0.2dB (1000 times mating)
    Tensile Strengh
    > 10kg
    Temperature
    ≤0.2dB (-40 ,+85 sustain 100 hours)
    Humidity
    ≤0.2dB (+25 ,+65 93 R.H.100 hours)
    Waterproof Optional Fiber Patch Cord Customize
    Connector type
    Duplex LC
    Ferrule End-face
    UPC, APC
    Fiber Core Type
    Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
    Waterproof Solution
    ODVA/FULLAXS/OPTITAP/NSN/AARC/PDLC/ODC/CPRI optional
    Fiber Cable Shape
    bundle fibers
    Cable Diameter
    φ5.0mm;φ7.0mm
    Length
    1, 2, 3, 5, 10 ,20,50,100,200 meter or customized length
    Jacket
    TPU,PVC, LSZH optional

    Features

    Ø High temperature stability, low insertion loss

    Ø Water proof, dust proof and corrosion resistant

    Ø Bump resistance - 4000 bumps @ 40g acceleration

    Ø Easy operation, reliable and cost-effective installation

    Ø Free fall resistance - 500 falls onto concrete from 1.2M height

    Applications:

    3G 4G base station used
    Aerospace & Defence
    Equipment diagnosis
    FO sensor
    TTA ,FTTP, FTTX,WIMAX
    BBU, RRU, RRH, LTE

    Why Choose Us:

    1.Competitive price
    2.Fast delivery
    3.Longtime warranty
    4.Reliable quality
    5.Professional product and technical support
    6.Prompt answer for any question or inquiry
    7.Value-added service: except good products, we can provide good services on logistic and other help you may need.

    Our Service:
    1.Send us your inquiry ,we will revert back to you within 12 hours.
    2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
    3.All our products are well tested,we provide you with test report and certification.
    4.We sincerely welcome customers home and abroad to visit our manufactory.

    LC DX Armored Fiber Optic Cable, Nokia Patch Cord Compatible NSN Connector, welcome to your inquriy.

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
