Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com

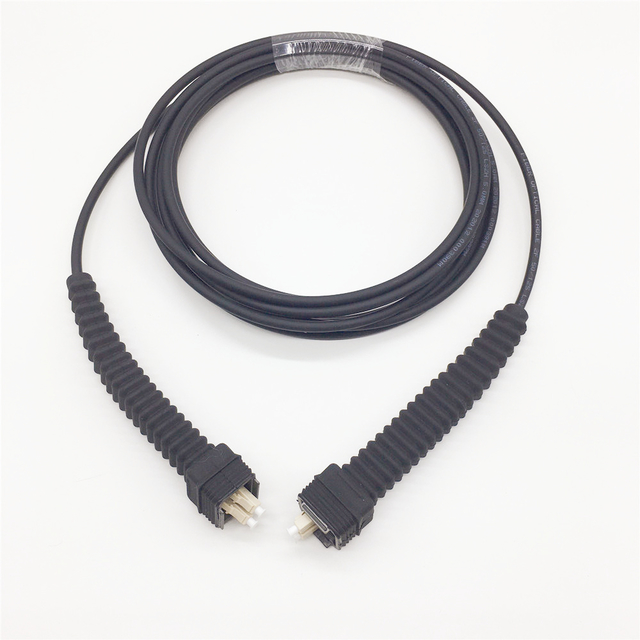

Outdoor NSN Duplex LC Fiber Optic Cable to standard SC/LC/FC/ST/E2000 duplex singlmode waterproof fiber patch cable with LC angled 90° with NOKIA compatible waterproof sealing on one end of the cable and standard SC/LC/FC/ST/E2000 connector on the other end. The connector is designed to exceed the requirements of ODVA, and meet IP66/67 environmental sealing ratings and is the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The SC/LC/FC/ST/E2000 connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. NSN to standard SC/LC/FC/ST/E2000single mode duplex waterproof fiber optical cable will not get damage even stepped, and anti-rodents, and suit to use in harsh environment.
Optical performance:
| Product Type | Cable | Fiber Type | Singlemode OS2 9/125 |
| Connector1 | NSN | Connector2 | SC/LC/FC/ST/E2000 |
| Trunk Diameter | 7.0mm | Branch Diameter | 3.0mm |
| Insertion Loss | ≤0.20dB | Return Loss | LC≥50dB,E2000APC≥60dB |
| Storage Temperature | -55°C-85°C | Operating Temperature | -40°C-85°C |
Cable spec:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature
| |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
Features
Ø High temperature stability, low insertion loss
Ø Water proof, dust proof and corrosion resistant
Ø Bump resistance - 4000 bumps @ 40g acceleration
Ø Easy operation, reliable and cost-effective installation
Ø Free fall resistance - 500 falls onto concrete from 1.2M height
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
Why Choose Us:
1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
Outdoor NSN Boot Duplex LC Fiber Optic Cable Jumper Patch Cord For NOKIA, wait for your inquiry.
