Different length will be different price, kindly contact us for detail price and leadtime.
SOGOO TECHNOLOGY CO., LTD
Mob/Wechat: +86-150-1946-5365
Whatsapp Business: +852 66425118
E-mail: sales@sogootech.com
Website: www.sogootech.com
www.telecomscable.com
Nokia Fiber Patch Cord is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Optical performance:
| Product Type | Cable | Fiber Type | Singlemode OS2 9/125 |
| Connector1 | NSN | Connector2 | SC/LC/FC/ST/E2000 |
| Trunk Diameter | 7.0mm | Branch Diameter | 3.0mm |
| Insertion Loss | ≤0.20dB | Return Loss | LC≥50dB,E2000APC≥60dB |
| Storage Temperature | -55°C-85°C | Operating Temperature | -40°C-85°C |
Cable spec:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature
| |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
Features
Ø High temperature stability, low insertion loss
Ø Water proof, dust proof and corrosion resistant
Ø Bump resistance - 4000 bumps @ 40g acceleration
Ø Easy operation, reliable and cost-effective installation
Ø Free fall resistance - 500 falls onto concrete from 1.2M height
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
Why Choose Us:
1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.

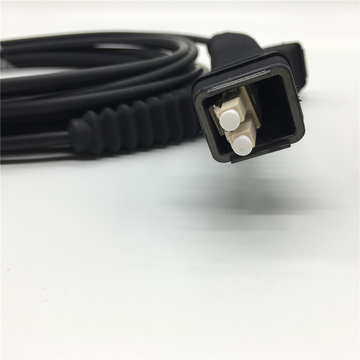

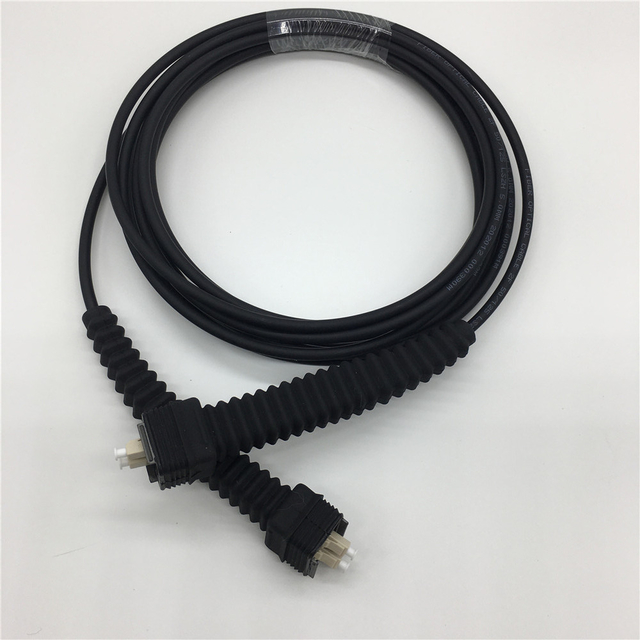

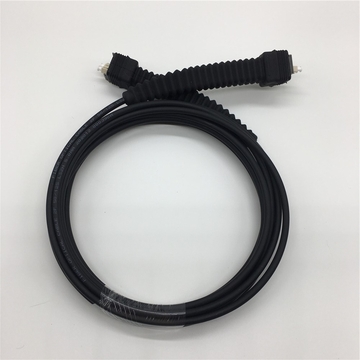

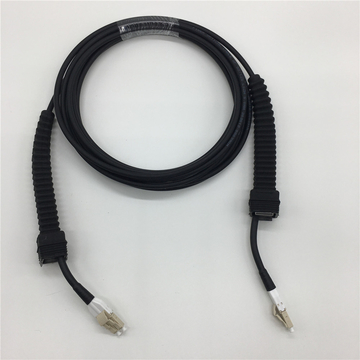

Outdoor Nokia Fiber Patch Cord With NSN Connector, LC DX Armored Fiber Optic Cable, welcome to your inquriy.
