Outdoor Fiber Patch Cable
Outdoor waterproof Tactical fiber
Outdoor waterproof Tactical fiber

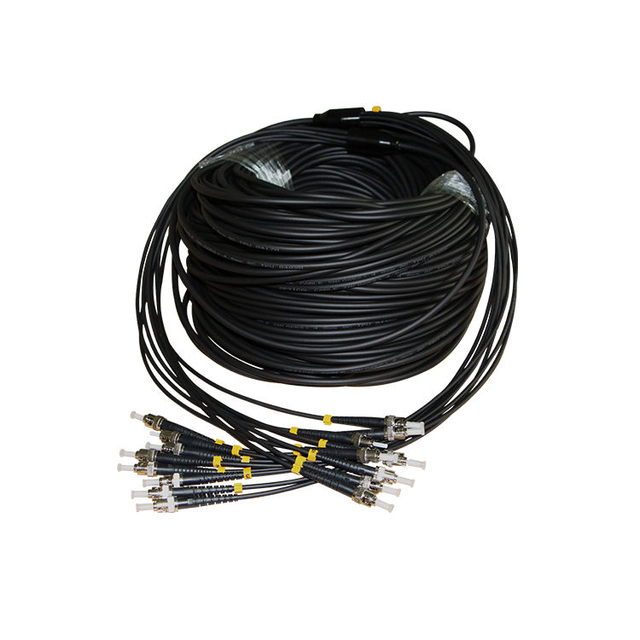

Outdoor waterproof Tactical fiber 8 12 24 cores SM OM3 OM4 Cable ODVA MPO MTP Connector

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.102483

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   18.5
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 1,850
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • Different length will be different price, kindly contact us for detail price and leadtime.

    SOGOO TECHNOLOGY CO., LTD

    Mob/Wechat: +86-150-1946-5365

    Whatsapp Business: +852 66425118

    E-mail: sales@sogootech.com

    Website: www.sogootech.com

    www.telecomscable.com

    Outdoor waterproof Tactical fiber 12 24 cores SM OM3 OM4 Cable ODVA MPO MTP Connector

    1.MPO(multi-fiber Push On) connector is one of the MT series connectors.

    2.MPO connector and fiber optic cable processing can produce various forms of MPO jumper.
    3.MPO jumpers are widely used in high-density integrated optical fiber line environments.
    4.The total length of MPO jumper or branch length and other requirements are at the customer's option.

    APPLICATION

    Data communication network
    Optical System Access network
    Storage area networking fiber channel
    High density architectures

    FEATURES

    Available for standard or low loss MPO/MTP® interface
    Bayonet locking design with IP68 sealing
    Highly customizable configurations
    Designed with protective housing, which fulfills IP67 environmental sealing

    Performance Level
    Standard
    Elite
    Connector
    Mode
    Endface
    IL(max) (dB)
    RL(min) (dB)
    IL(max) (dB)
    RL(min) (dB)
    MPO/MTP
    SM
    12F/APC
    ≤0.70
    ≥60
    ≤0.35
    ≥60
    24F/APC
    ≤0.75
    ≥60
    ≤0.35
    ≥60
    48F/APC
    ≤0.75
    ≥60
    MM
    12F/PC
    ≤0.50
    ≥20
    ≤0.35
    ≥20
    24F/PC
    ≤0.50
    ≥20
    ≤0.35
    ≥20
    48F/PC
    ≤0.50
    ≥20
    LC/SC/FC/ST
    SM
    APC
    ≤0.30
    ≥60
    ≤0.10
    ≥60
    UPC
    ≤0.20
    ≥50
    ≤0.10
    ≥50
    MM
    PC
    ≤0.20
    ≥30
    ≤0.10
    ≥30

    Note:
    1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
    2.Standard conformance: GR-326,GR-1435.

    Mechanical Properties
    Item
    Criteria
    Conformance
    △IL After 50 Matings
    MPO/MTP
    ≤0.3dB
    GR-1435
    △IL After 500 Matings
    LC/SC/FC/ST
    ≤0.2dB
    IEC 61300-2-2
    Min Bend Radius (Dynamic)
    20*OD (Cable Diameter)
    Min Bend Radius (Static )
    15*OD (Cable Diameter)
    Environment Conditions
    Item
    Criteria
    Conformance
    Operation Temperature
    -40~60°C
    IEC 61753-1
    Storage Temperature
    -45~85°C

    Look forward to your inquiry about our Outdoor waterproof Tactical fiber 12 24 cores SM OM3 OM4 Cable ODVA MPO MTP Connector .

  • Specification
    • Color Black
    • Cores 2 cores
    • Connector LC
    • Opotion connector SC-ST-FC
    • Armored Branch
    • Corrugated Pipe No, if need, pls check price with sales
    • Armored Fiber cable Yes, branch armored
    • Dia of Fiber cable φ5.0mm;φ7.0mm
    • Application Fiber to the Antenna
    • Weight 1 kg
    • Package 1000.00cm*1000.00cm*1000.00cm
